New: Our Spring Winding Tools Surewinder and Brutewinder 15-04-2025
At DOCO, we have two high-quality, robust spring winding tools in our assortment: the Surewinder and the Brutewinder. The Surewinder is the original spring winding tool, specifically designed to safely and efficiently handle residential spring winding tasks. For industrial applications, the Brutewinder is our most powerful spring winding tool, built to tackle the biggest and most demanding industrial spring winding needs.
How does it work?

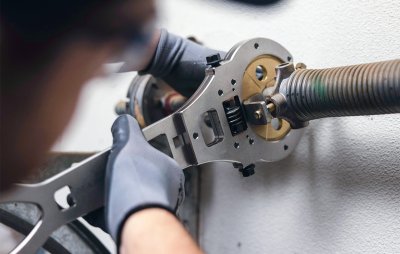

Our spring winding tools use a worm gear system powered by a low-RPM, high-torque drill to wind springs in under three minutes with minimal effort. Its design prevents the spring from unwinding on its own, ensuring a safe and controlled operation. This proven safety mechanism is commonly used in winches and other high-safety applications.
Have a look at the instruction video for an in-depth explanation.
Surewinder vs. Brutewinder
| Feature | Surewinder | Brutewinder |
|---|---|---|
| Application | Residential & light industrial | Industrial |
| Max. torque rating | 115,8 Nm | 285 Nm |
| Max. wire thickness | 9 mm | 12 mm |
| Nut for driving | 14 mm with a 6-point socket | |
| Min. clearance area (from shaft to wall) | 64 mm | 89 mm |
| Suitable spring diameter | 51 - 95 mm | 51 - 152 mm |
| Suitable shaft diameter | 25,4 mm (1”) | 25,4 mm (1”) & 31,75 mm (1,25”) |
| Weight | 3,4 kgs | 5 kgs |
| Size of tool | 533 x 152 x 89 mm | 625 x 206 x 127 mm |
| Material | 304 stainless steel & bronze | |
Should you have any questions or require further information about these updates, please do not hesitate to contact us. We are dedicated to supporting you throughout this transition and beyond.
Yours faithfully,
DOCO International
