Set of plugs M-133 mm (SL-SR-WL-WR)
Unit
Set
Box
5
Pallet
180
Weight (kg)
2.9
Technical information
Residential
Centre distance
104
Max. Torque
192
Torsion spring diameter (mm)
133
Outer diameter
133
Shaft diameter ("/mm)
1" (25,4)
Product description

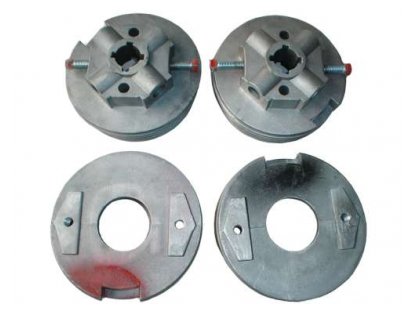

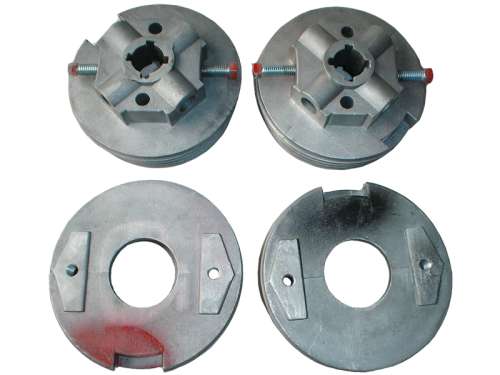

Set spring plugs; 12012-WL + 12012-WR + 12012-SL + 2012-SR.
The winding plug has two 3/8" set screws for fixing to the shaft.
Stationary plug has a 50.8 mm hole for bearing placement. Max. Torque: 192 Nm.
Suitable for 1 inch (25.4mm) shaft. Max torque bolts 20Nm.
Unit: Set (4 pieces:2 x Stationary (L+R) + 2 Winding plug (L+R)).
Thread: Not universal, left hand and right hand thread, max 11mm. Marking: Black = Left, Red = Right.
