230220-R9016
230220-R9016

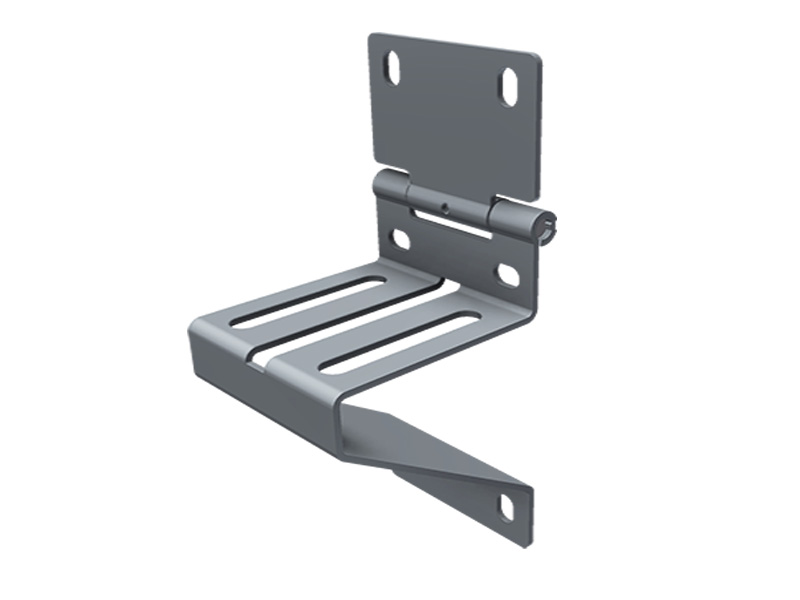

Side hinge without roller carrier Kingspan-Tecnopan Ral9016
Unit
Piece
Box
50
Pallet
2700
Weight (kg)
0.27
Technical information
Teckentrup
-
Residential
Kingspan
Tecnopan
Hinge type
Side hinge
Silent
-
Panel thickness (mm)
40
Surface finish
Painted
RAL color
RAL9016
Material
Zinc plated steel
Product description
Side hinge for standard finger safe panels.
Use with intermediate hinge 230222.
Can be combined with a with separated roller carrier: 25438 (double),25238, 25239, 25038(ø12).
Suitable for Tecnopan and Kingspan finger safe panels.
Required fasteners: 150131 (2*) & 14022 (2*).
Material:Zinc plated steel. RAL9016
