Spring plugs M-95
Unit
Pair
Box
24
Pallet
648
Weight (kg)
0.61
Technical information
Industrial
Centre distance
138
Max. Torque
157
Torsion spring diameter (mm)
95.28
Outer diameter
95.25
Shaft diameter ("/mm)
1" (25,4)
Product description

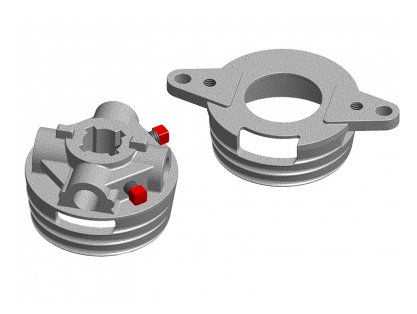

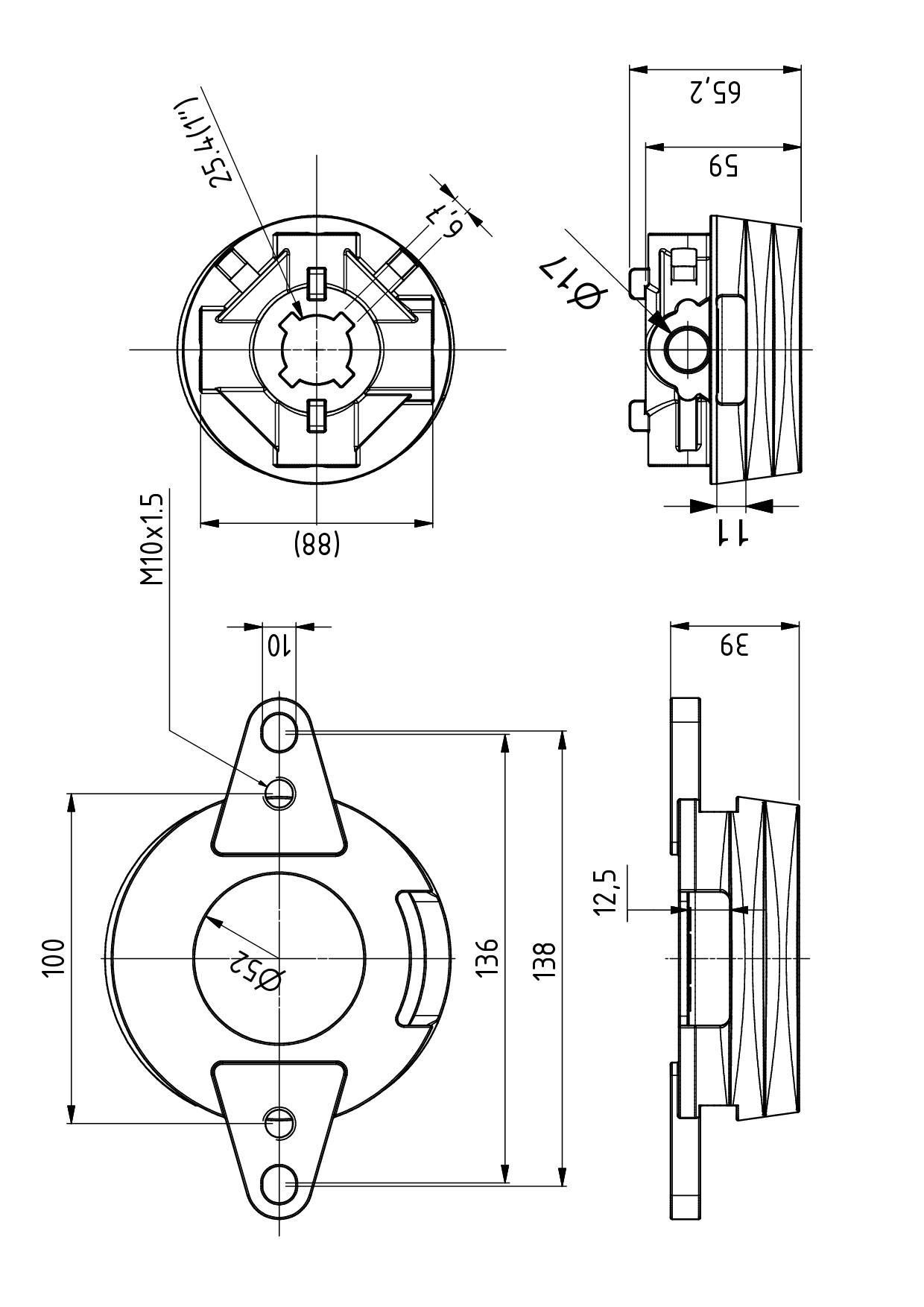

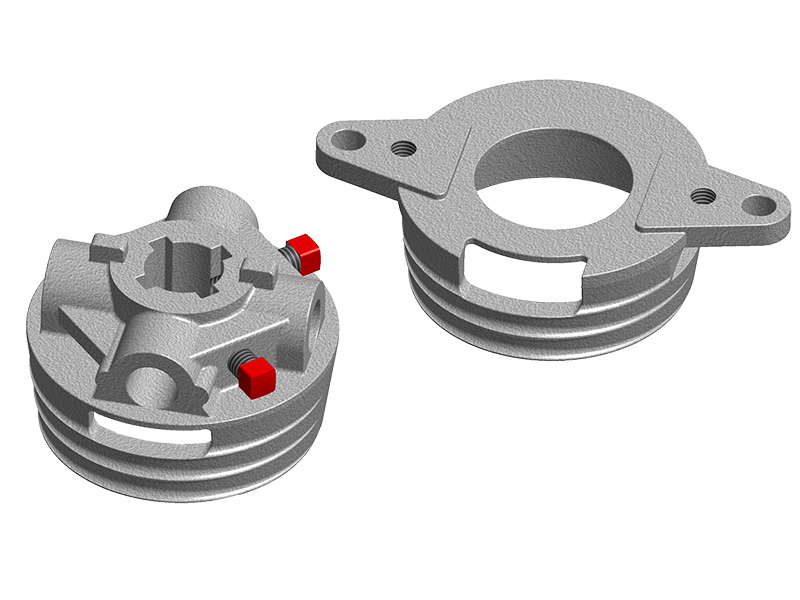

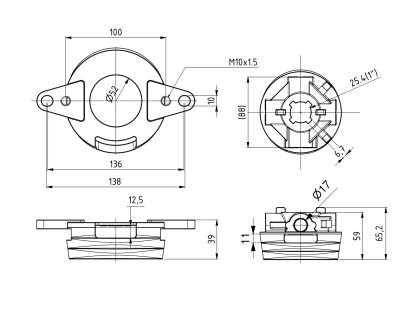

Includes one winding plug and one stationary plug. Centre distance of mounting holes: 136-138 mm. The winding plug has two 3/8" set screws for fixing to the shaft. Stationary plug has a 50,8 mm hole for bearing placement. Max. Torque:157Nm. Suitable for 1 inch (25,4mm) shaft. Max torque bolts 20Nm. Unit:Pair (Stationary plug (S) + Winding plug (W))Weight:0.61 kg / prMaterial:AluminiumThread:Universal L+R, max. 10mm.Marking:None.
