111120
Important: this item is not available. Please contact your sales representative for an alternative product.
111120

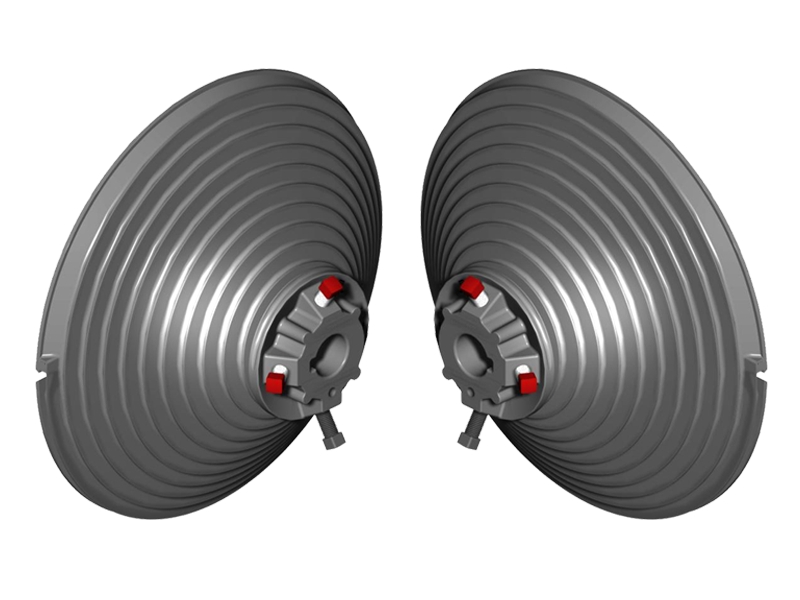

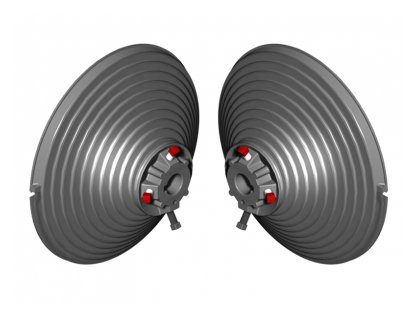

Drums M343-8500 31.75 mm VL
Unit
Pair
Box
2
Pallet
24
Weight (kg)
8.42
Technical information
Industrial
System
Vertical lift
Max. load (kg)
1000
Shaft diameter ("/mm)
1.25" (31,7)
Safety windings
2.0
Material
Die-cast Aluminium
Cable diameter (mm)
6
Max. height 0.5 safety (mm)
8401
Max. height 2.0 safety (mm)
6929
Offset (mm)
190
Product description
Is used for Vertical lift doors. Supplied with 2 set screws forfixation on shaft. One cable set screw for cable fixation. Formore information ask for a customer drawing. Minimum walloffset = 190mm. Max torque bolts 20Nm. Material: Aluminium Max. door height: 8401 mm at 0.5 safety windings: 6929 mm at 2.0 safety windings Max. door weight: 1000 kg Max. cable diameter: 6mm. Shaft diameter: 1 ¼ " (31.75 mm). Marking: Red = Left, Black = Right.
