110030
110030
Drums M203-9750 SL
Unit
Pair
Box
2
Pallet
60
Weight (kg)
7.67
Technical information
Industrial
System
Standard lift
Max. load (kg)
1000
Shaft diameter ("/mm)
1" (25,4)
Safety windings
0.5
Material
Die-cast Aluminium
Cable diameter (mm)
6
Max. height 0.5 safety (mm)
9642
Max. height 2.0 safety (mm)
8652
Offset (mm)
127
Product description

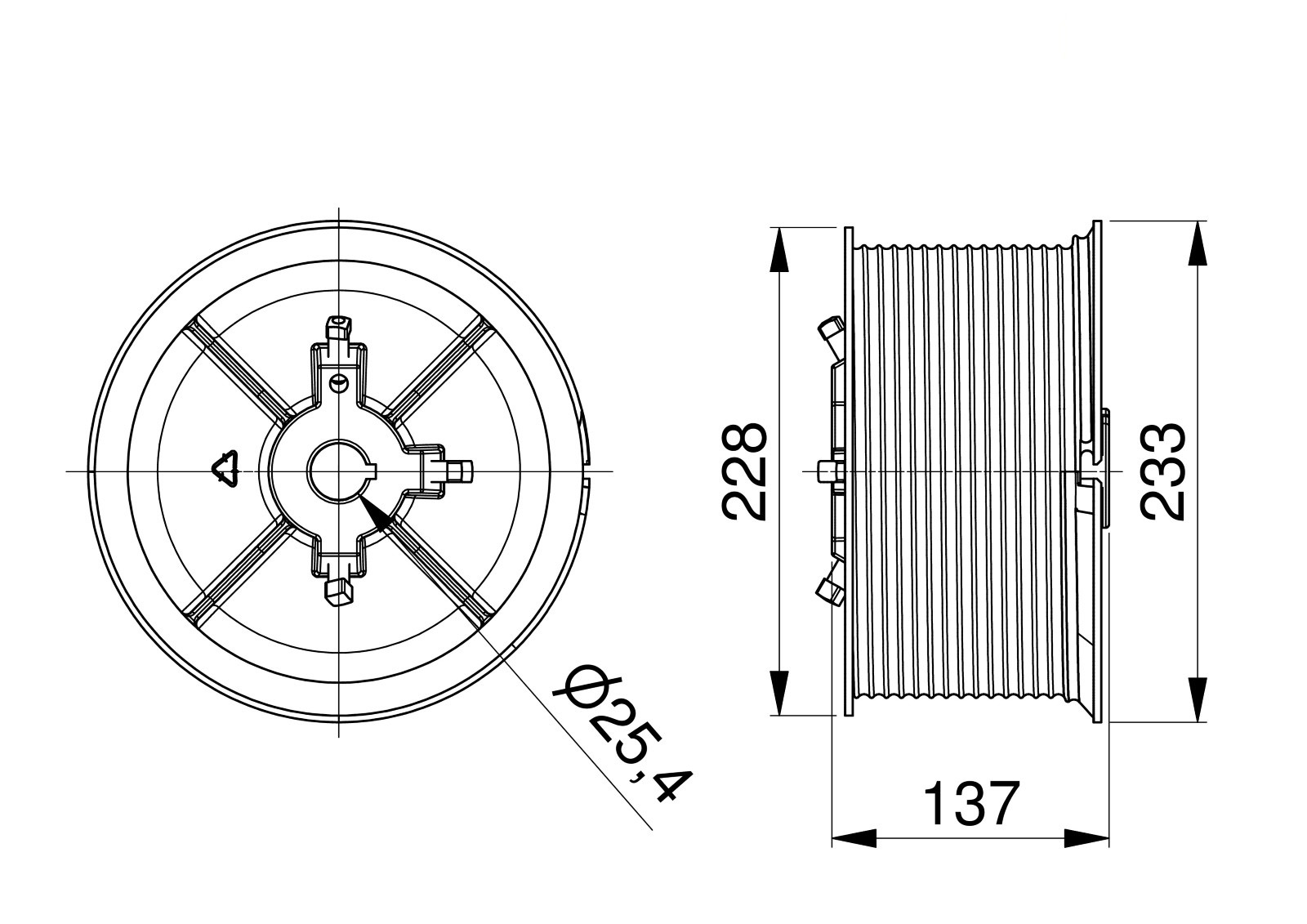

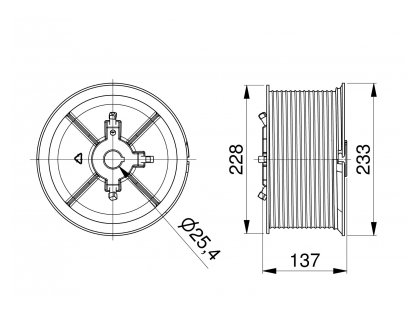

Is used for a standard lift door. Supplied with 2 set screws for fixation on shaft. One cable set screw for cable fixation. For more information ask for a customer drawing. Minimum wall offset = 127mm. Max torque bolts 20Nm. Max. door height: 9642 mm at 0.5 safety windings: 8652 mm at 2.0 safety windings Max. door weight: 1000 kg. Max. cable diameter: 6 mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
