110070
110070

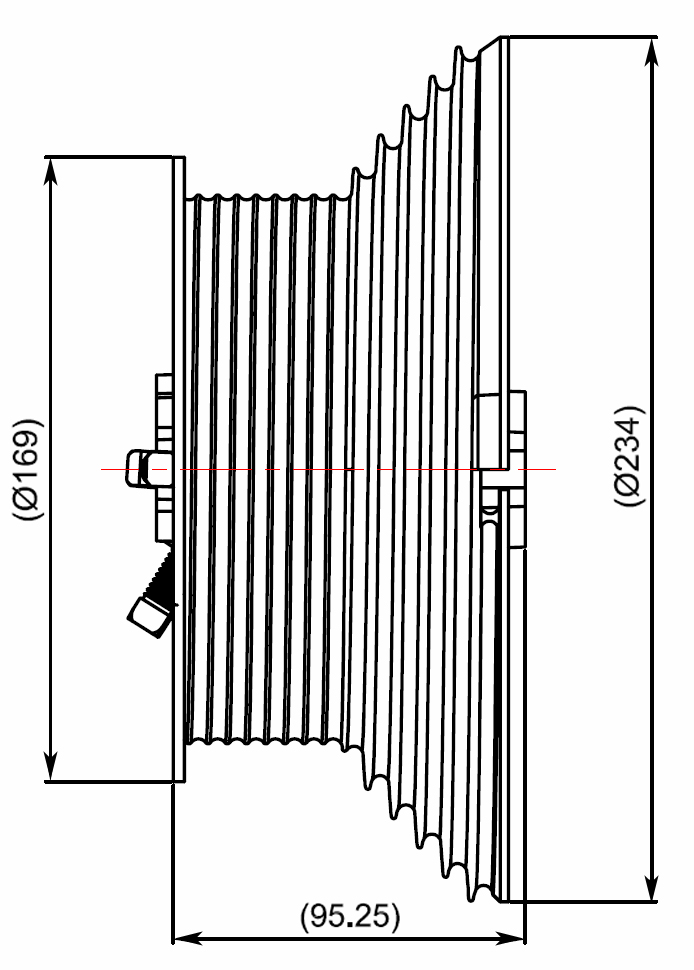

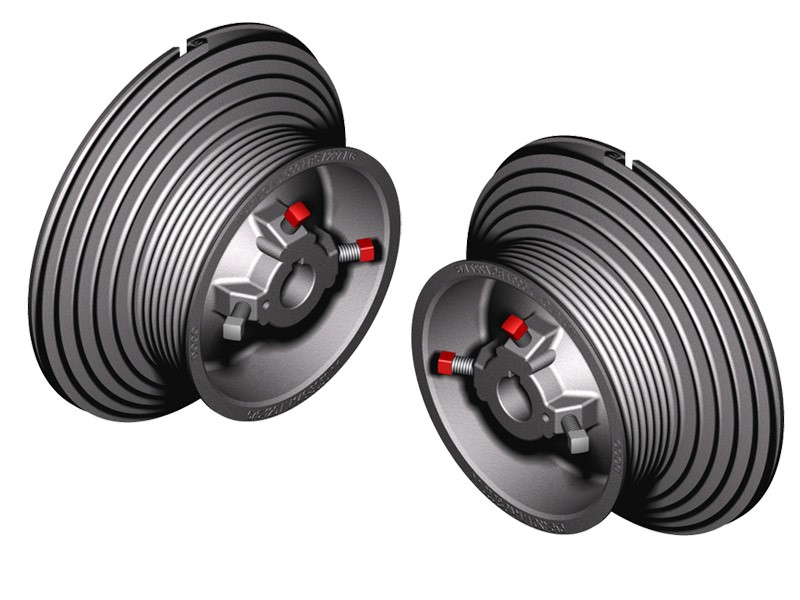

Drums M146-3050 HL
Unit
Pair
Box
8
Pallet
64
Weight (kg)
2.27
Technical information
Industrial
System
High lift
Max. load (kg)
454
Shaft diameter ("/mm)
1" (25,4)
Safety windings
0.5
Material
Die-cast Aluminium
Cable diameter (mm)
5
Max. height 0.5 safety (mm)
2997
Max. height 2.0 safety (mm)
1967
Offset (mm)
127
Product description
Is used for High lift doors. Supplied with 2 set screws for fixation on shaft. One cable set screw for cable fixation. For more information ask for a customer drawing. Minimum walloffset = 127mm. Max torque bolts 20Nm. Max. High lift: 2997 mm at 0.5 safety windings: 1967 mm at 2.0 safety windings Max. door height: Depending on opening height and high lift.
Max. door weight: 454 kg Max. cable diameter: 5mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
