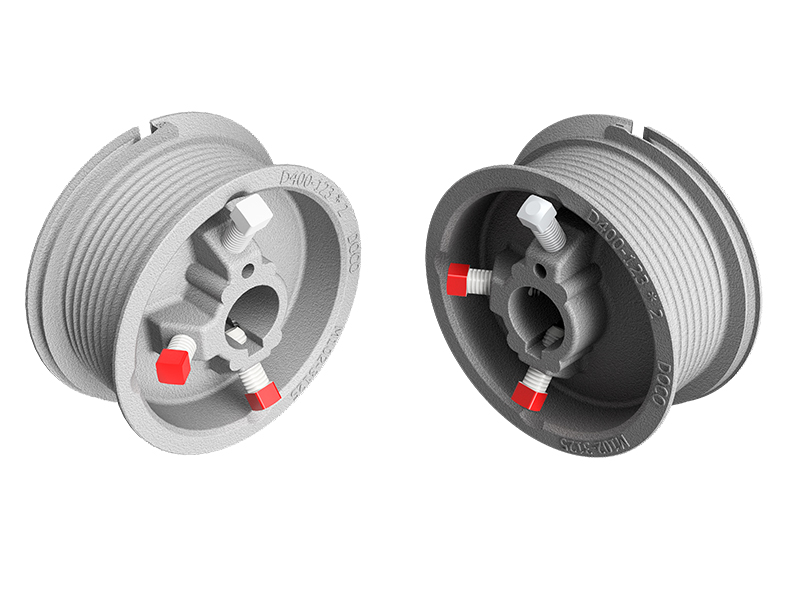

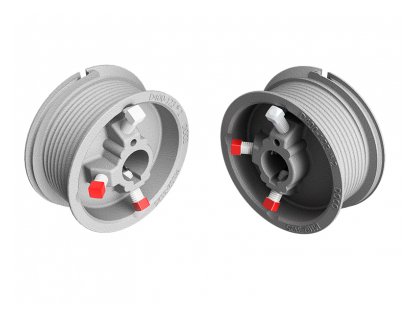

Drums M102-3125 SL
Unit
Pair
Box
30
Pallet
540
Weight (kg)
0.76
Technical information
Residential
System
Standard lift
Max. load (kg)
340
Shaft diameter ("/mm)
1" (25,4)
Safety windings
0.5
Material
Die-cast Aluminium
Cable diameter (mm)
4
Max. height 0.5 safety (mm)
3070
Max. height 2.0 safety (mm)
2558
Offset (mm)
67
Product description

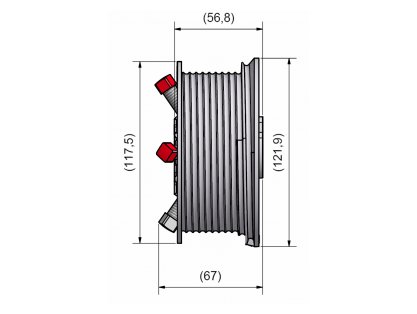

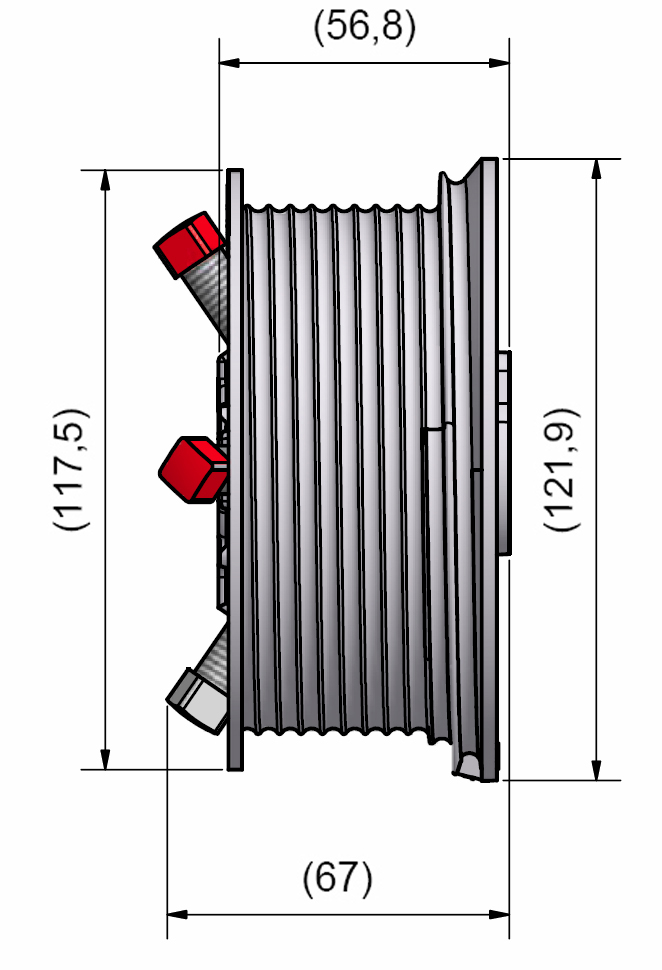

Is used for a standard lift door. Supplied with 2 set screws for fixation on shaft. Supplied with 1 cable set screw for cablefixation. For more information ask for a customer drawing.Minimum wall offset = 67 mm. Max torque bolts 20Nm. Max. door height: 3070 mm at 0.5 safety windings: 2558 mm at 2.0 safety windings. Max. torque on set screws 25Nm.
Max. door weight: 340 kg Max. cable diameter: 4 mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
