Drums M102-2400 SL
Unit
Pair
Box
42
Pallet
756
Weight (kg)
0.46
Technical information
Residential
System
Standard lift
Max. load (kg)
240
Shaft diameter ("/mm)
1" (25,4)
Safety windings
0.5
Material
Die-cast Aluminium
Cable diameter (mm)
3
Max. height 0.5 safety (mm)
2495
Max. height 2.0 safety (mm)
1973
Offset (mm)
67
Product description
Is used for a standard lift. Cable has to be supplied with cablecollar.
For more information ask for a costumer drawing.
Minimum wall offset: 67 mm.
Max torque bolts 20Nm.
Max. door height: 2495mm at 0.5 safety windings: 1973 mm at 2.0 safety windings
Max. door weight: 240 kg.
Max. cable diameter: 3mm.
Shaft diameter: 1 inch (25.4mm).

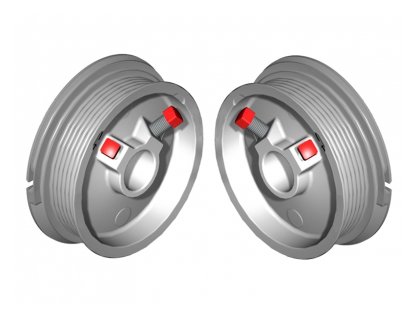

Marking: Red = Left, Black = Right.
