110050
110050

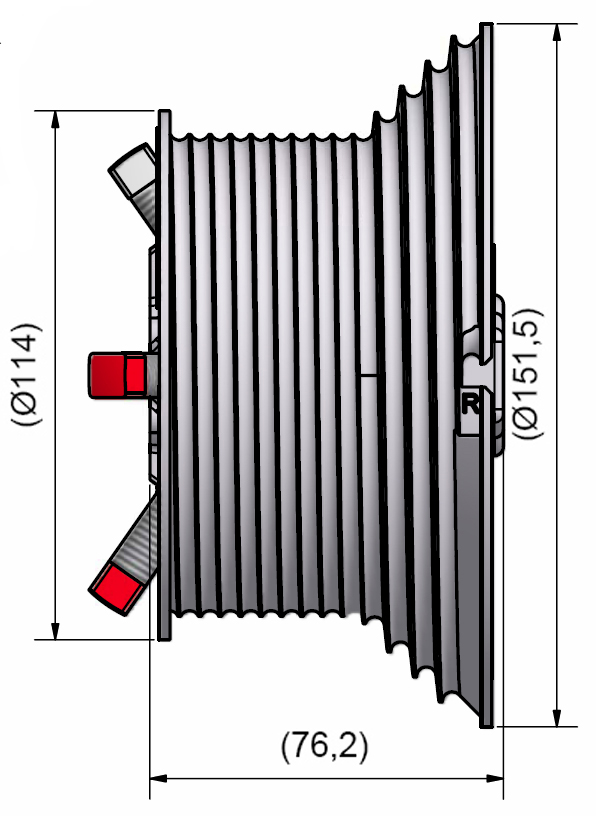

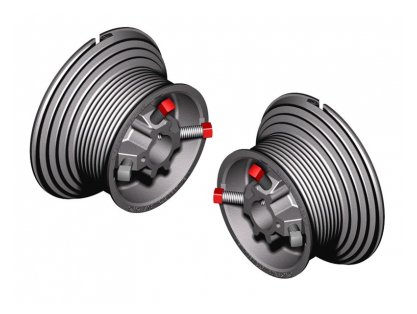

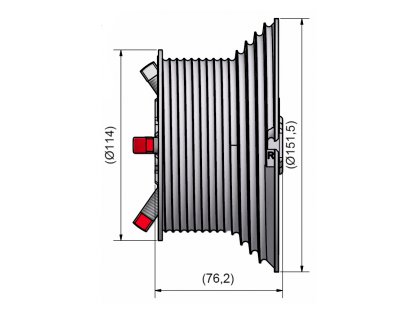

Drums M102-1375 HL
Unit
Pair
Box
9
Pallet
216
Weight (kg)
1.03
Technical information
Industrial
System
High lift
Max. load (kg)
250
Shaft diameter ("/mm)
1" (25,4)
Safety windings
0.5
Material
Die-cast Aluminium
Cable diameter (mm)
4
Max. height 0.5 safety (mm)
1376
Max. height 2.0 safety (mm)
740
Offset (mm)
86
Product description
Is used for High lift doors. Supplied with 2 set screws for fixation on shaft. One cable set screw for cable fixation. For more information ask for a costumer drawing. Minimum walloffset: 86mm. Max torque bolts 20Nm. Max. High lift: 1376 mm at 0.5 safety windings: 740 mm at 2.0 safety windings Max. door height: Depending on opening height and high lift.
Max. door weight: 250 kg Max. cable diameter: 4mm. Shaft diameter: 1 inch (25.4mm). Marking: Red = Left, Black = Right.
