215090-4000
Important: this item is not available. Please contact your sales representative for an alternative product.
215090-4000

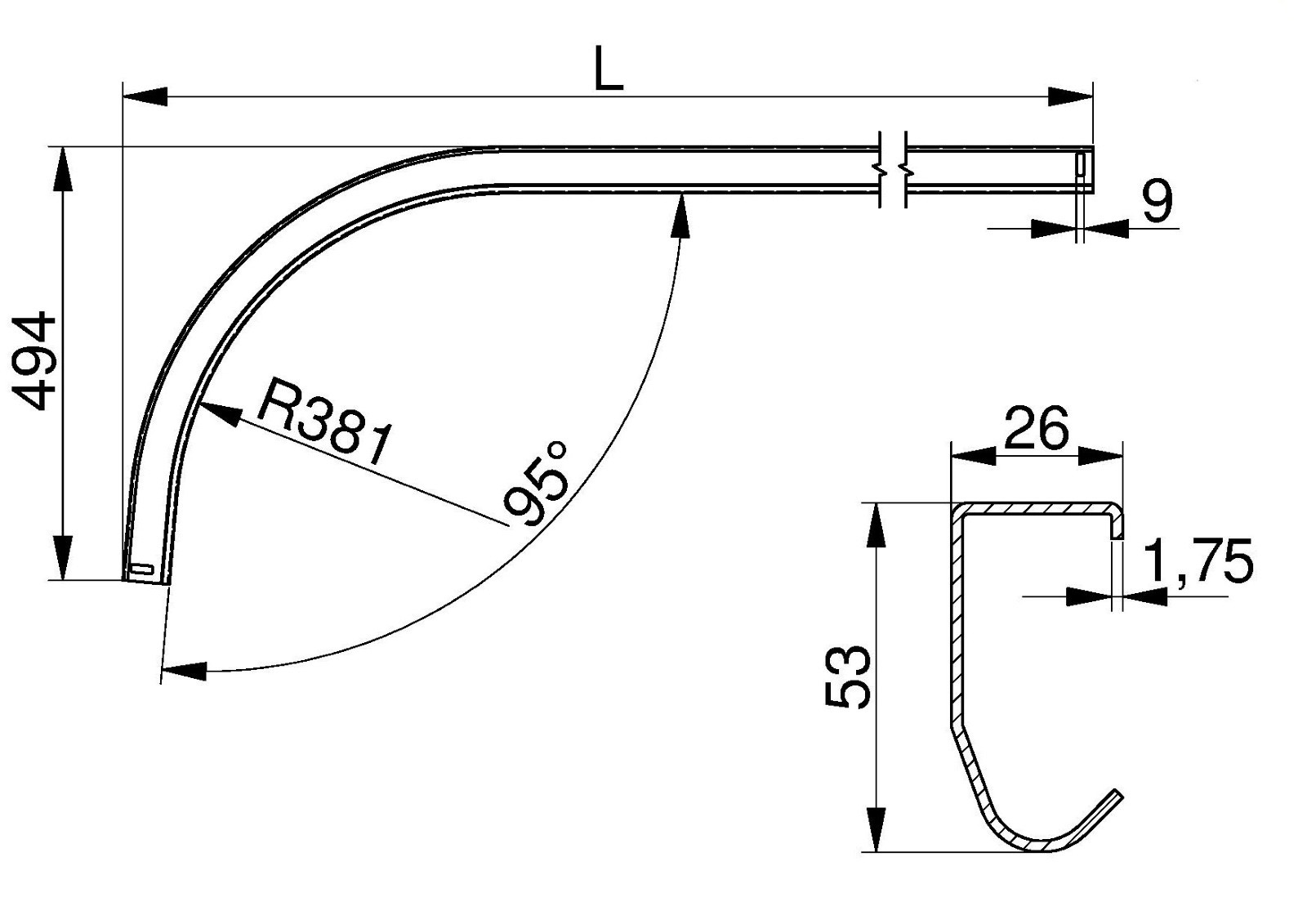

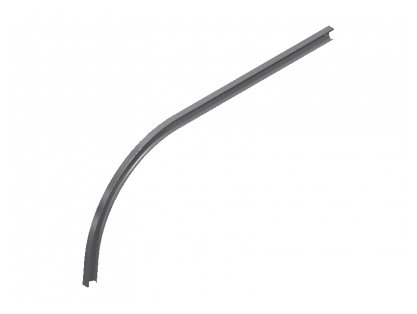

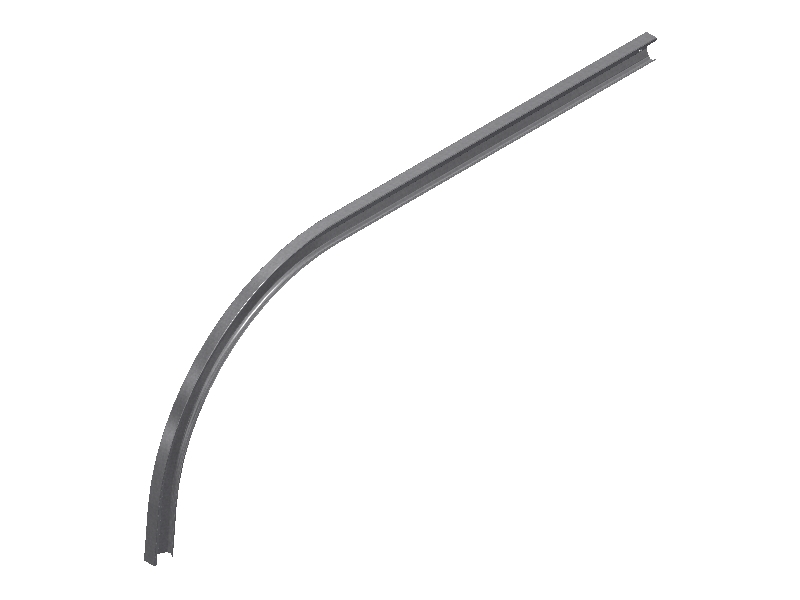

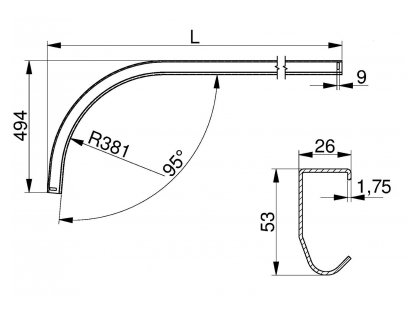

Curves R381-95º L=4000 mm
Unit
Pair
Box
5
Pallet
100
Weight (kg)
12.3
Technical information
Industrial
Length (mm)
4000
Material
Galvanized steel
Pitch Angle (°)
95.0°
Radius (mm)
381
Thickness (mm)
1.75
Product description
2"curve, R381, prevents the roller from running out of the tracks. Reinforced 1,75mm profile. Very stable because of 100mm straight curve end. 95° curves, special for HL. Applications. With slotted holes at both sides, 25x9mm. L=1100 mm.
