25042.1
25042.1

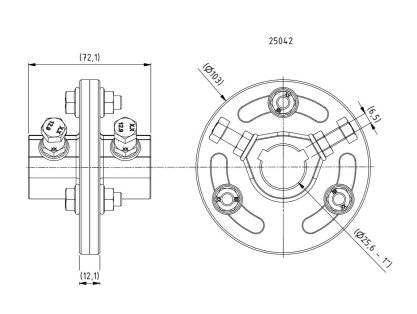

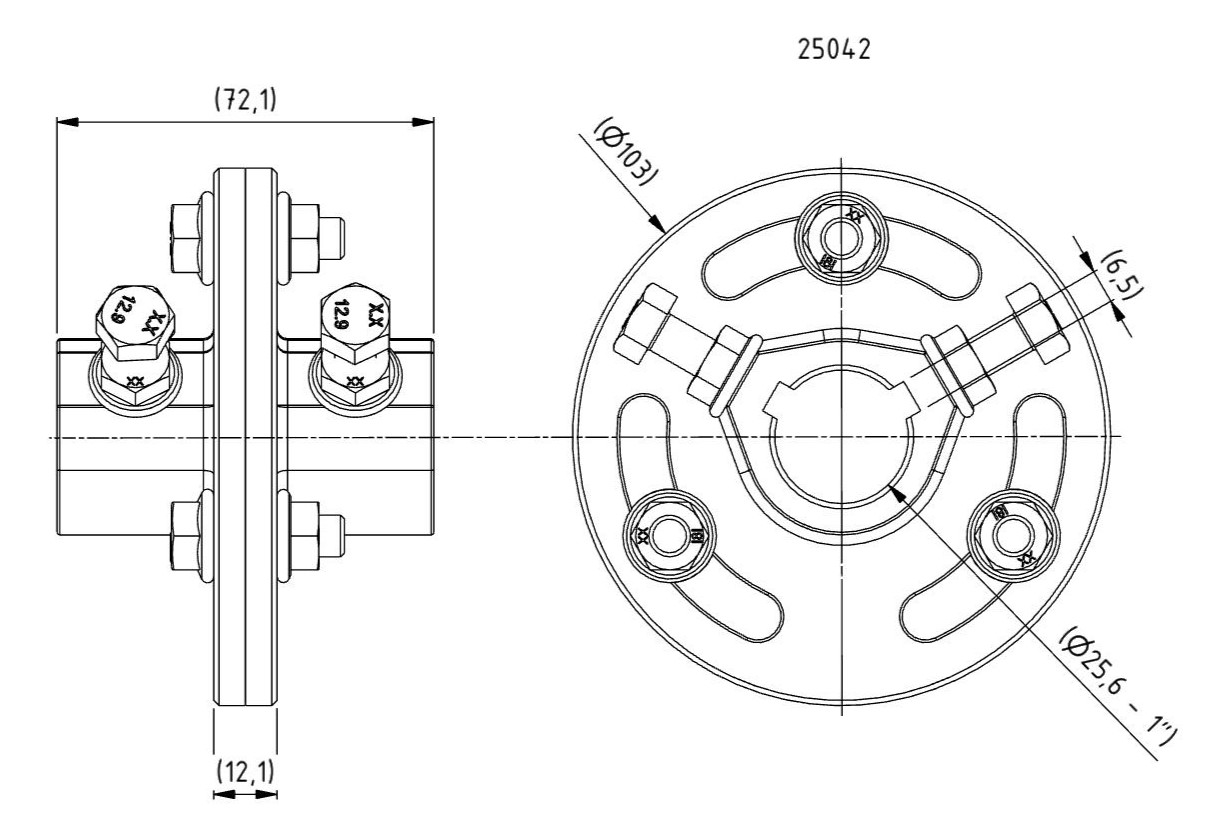

Cast iron adjustable coupler 25,4 mm
Unit
Piece
Box
15
Pallet
420
Weight (kg)
1.48
Technical information
Material
Galvanized steel
Industrial
Length (mm)
None
Shaft diameter ("/mm)
1" (25,4)
Keyway
Yes
Material
Cast steel
Adjustable
Product description
Heavy duty adjustable coupling, 2 halves including keyway and set screws.
Suitable for 25.4mm shafts with keyway.
Fixation screw: Advice torque = 32-36 Nm. Max. torque = 45 Nm.
Fixation bolts: Advice torque = 55 Nm. Max. torque = 60 Nm.
Max. torque difference = 224 Nm.
