Spring plugs M-67
Unit
Pair
Box
25
Pallet
500
Weight (kg)
0.4
Technical information
Residential
Industrial

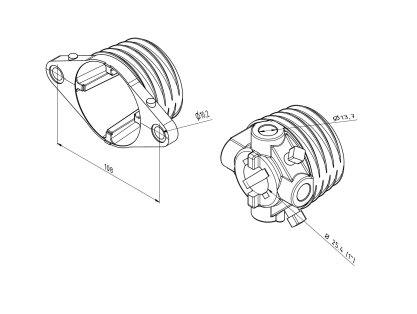

Centre distance
108
Max. Torque
89
Torsion spring diameter (mm)
67
Outer diameter
66.68
Shaft diameter ("/mm)
1" (25,4)
Product description

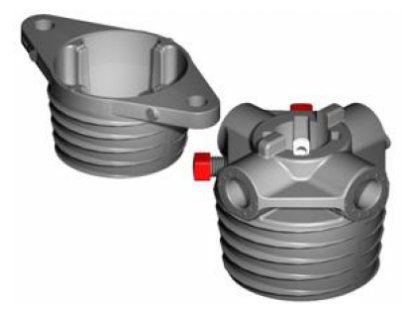

Includes one winding plug and one stationary plug. The winding plug has two 3/8" set screws for fixing to the shaft. Stationary plug has a 50.8 mm hole for bearing placement. Max. Torque: 89Nm. Suitable for 1 inch (25.4mm) shaft. Max torque bolts 20Nm. Material: Aluminium. Thread: Universal, max. 7,5 mm
- Spring according to DIN 2095
- Allowed spring internal diameter range: Ø64,28 – Ø66,68 mm
- Allowed wire gauges: ø6,0 - ø7,5 mm
