Steel coupler 31,75 mm L= 100 mm
Unit
Piece
Box
20
Pallet
300
Weight (kg)
0.93
Technical information
Material
Galvanized steel
Industrial
Length (mm)
100
Shaft diameter ("/mm)
1.25" (31,7)
Keyway
Yes
Material
Steel
Adjustable
-
Product description

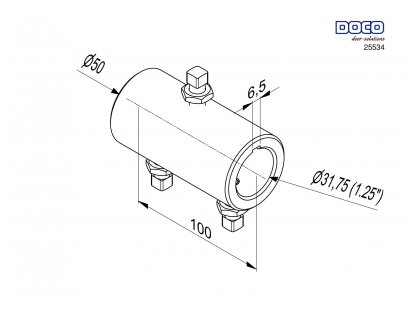

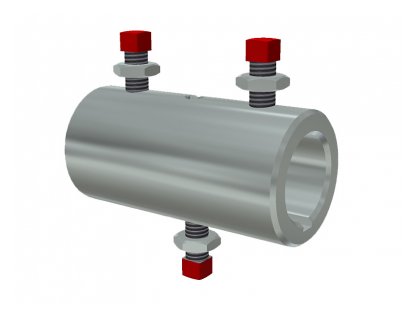

Solid steel coupling with keyway and 3 set screws for shaft fixation.
Suitable for 31.75mm shaft.

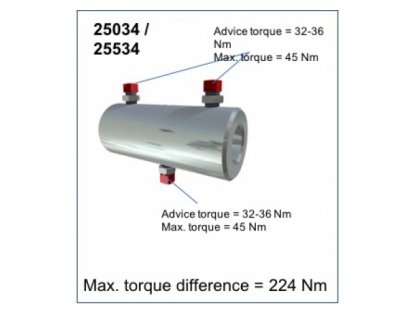

Fixation bolts: Advice torque = 32-36 Nm. Max.torque = 45 Nm.
Max. torque difference = 224 Nm.
