85603-PC
85603-PC
Plexiglass window 304x609 mm single pcd, -non-sealed glass-
Unit
Piece
Box
8
Pallet
192
Weight (kg)
1.68
Technical information
Color
Black
Application area
Residential, Industrial
Maximum tightening torque (Nm)
1.6
Panel thickness (mm)
40
Dimension
551 x 248/610 x 305
Material finish
ABS - grained
Glazing
PMMA 2,0
Window type
Rounded corners
Screws included
Product description

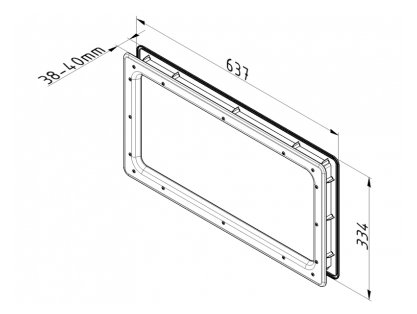

Sight dimensions (b x h): 551 x 248 mm.
Cutting dimensions (b x h): 610 x 305 mm.
U = 2,7 W/m²K.
Window consists of an outer and inner frame.
Outer frame: glued 1 x 2mm PC and 1 x 2mm PMMA.
Outer frame provided with butyl seal for max 0.5 mmunevenness.
Greater unevenness (ie panel with dents) will need additional sealant.
Material frame: Polypropylene, black.
