85102
85102
Oval window, snap-lock, -sealed glass-
Unit
Piece
Box
8
Pallet
192
Weight (kg)
1.66
Technical information
Color
Black
Application area
Residential, Industrial
Panel thickness (mm)
40
Dimension
651 x 251/695 x 298
Material finish
ABS - grained
Glazing
PMMA 2,0
Window type
Rounded corners
Screws included
-
Product description

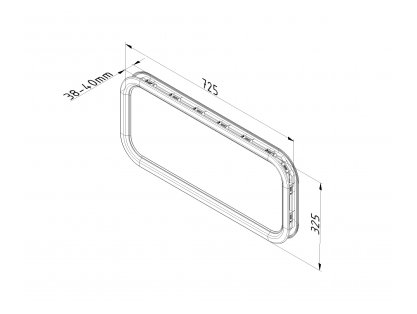

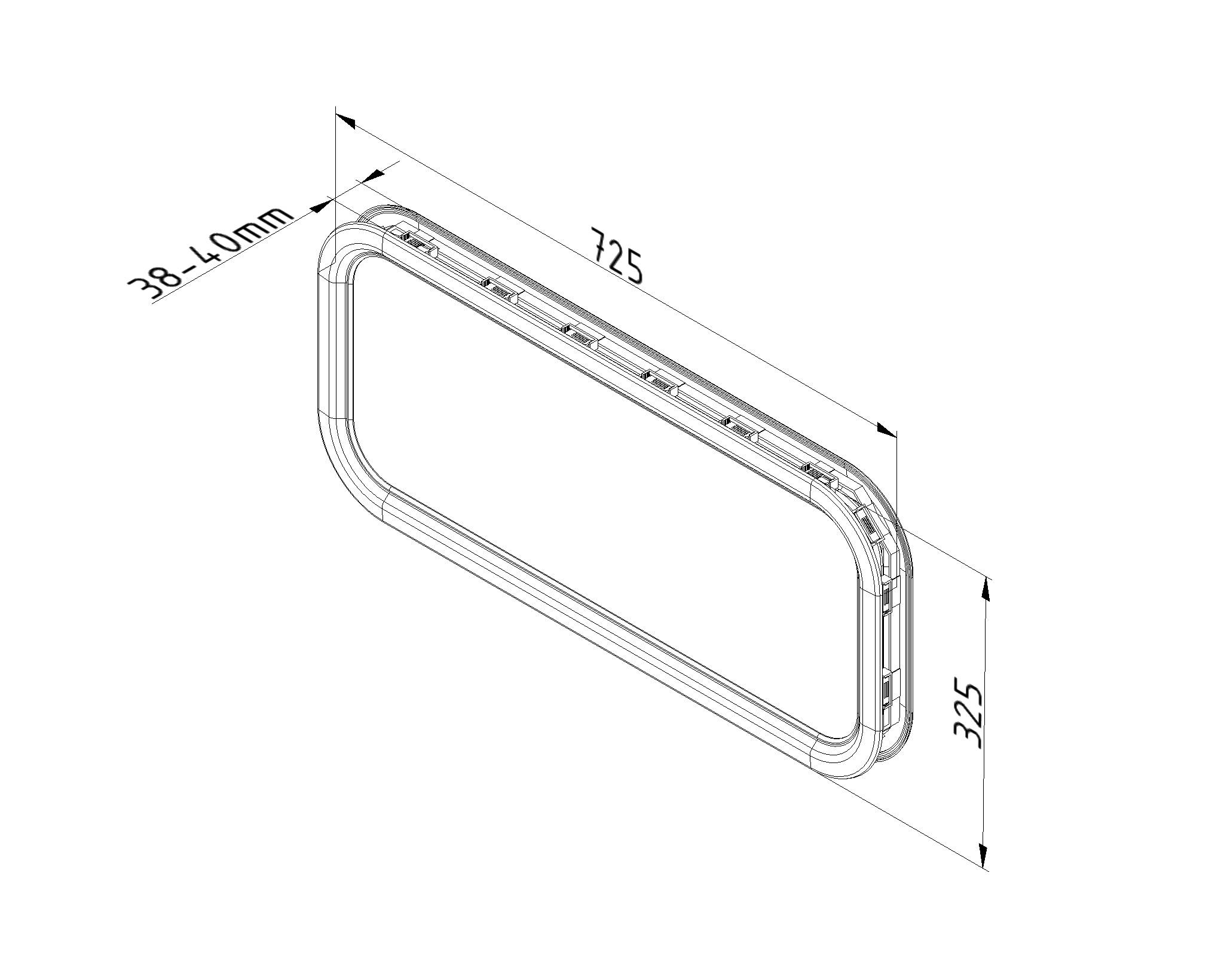

Sight dimensions (b x h): 651 x 251 mm.
Cutting dimensions (b x h): 695 x 298 mm.
Radius R70U = 2,7 W/m²K.
Window consists of 2 frames.
Outer frame: glued 2x 15.1, 2mm PMMA glazed, provided with butyl seal for max 0.5 mm unevenness.
Greater unevenness (ie panel with dents) asks for additional kit .
Inside frame: open and provided with snap lock con.
Material frame: Polystyrene, black.
