112001
112001

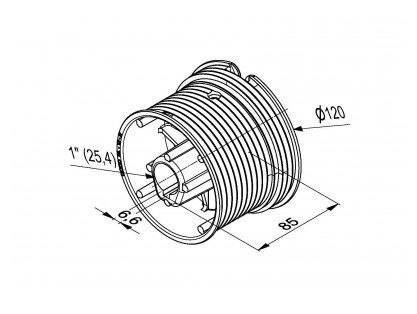

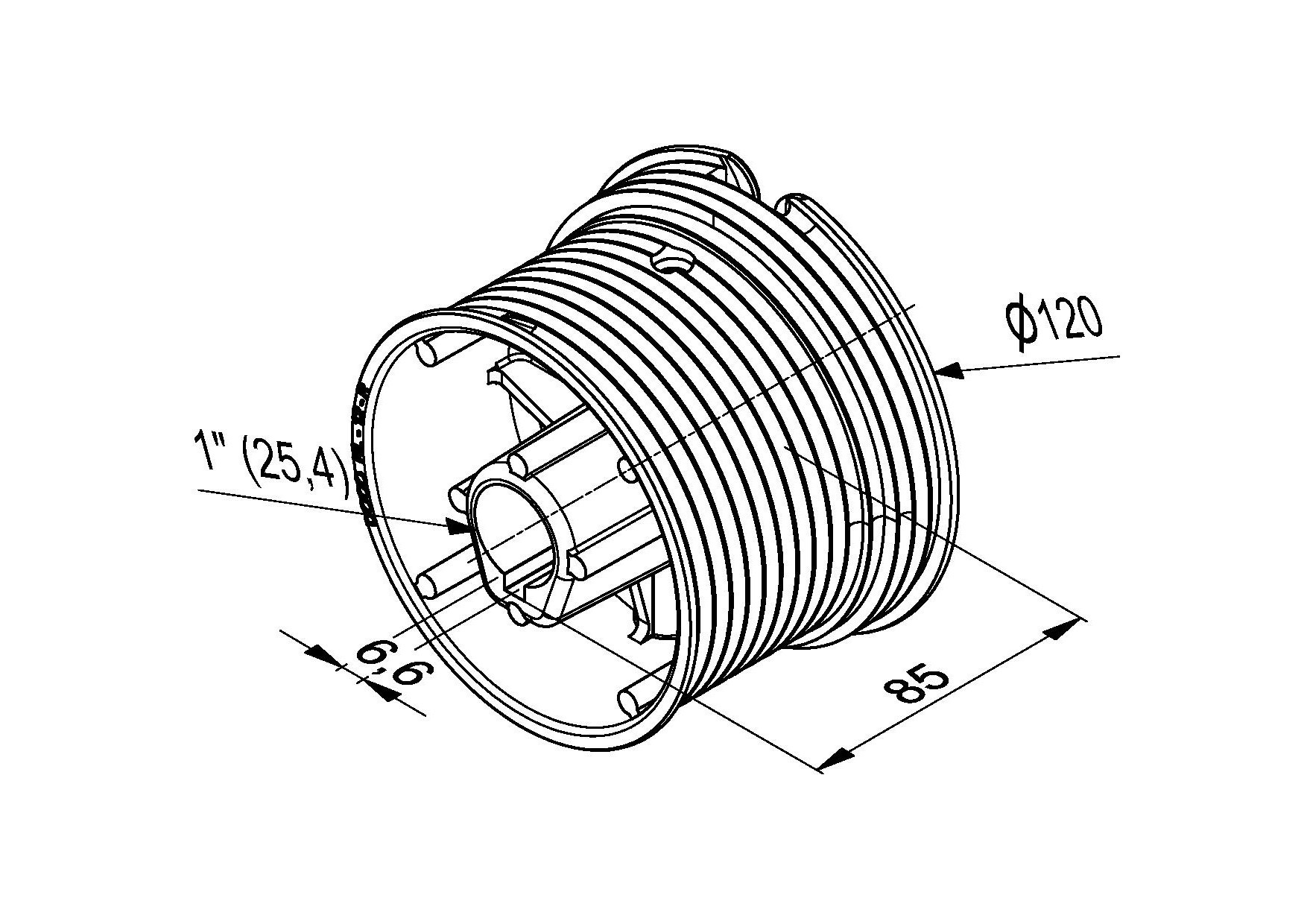

Drums 2SW NL12-3680
Unit
Pair
Box
18
Pallet
324
Weight (kg)
1.02
Technical information
Industrial
Residential
System
Standard lift
Max. load (kg)
500
Shaft diameter ("/mm)
1" (25,4)
Safety windings
2.0
Material
Die-cast Aluminium
Cable diameter (mm)
5
Max. height 0.5 safety (mm)
-
Max. height 2.0 safety (mm)
3680
Offset (mm)
67
Product description
Is used for a standard lift. Supplied with 2 set screws forfixation on shaft. One cable set screw for cable fixation. Formore information ask for a costumer drawing.
Minimum wall offset = 67 mm
Max torque bolts 15Nm
Material: Aluminium
Max. door height: 3680 mm
Max. door weight: 500 kg
Max. cable diameter: 5 mm
Shaft diameter: 1 inch (25.4mm)

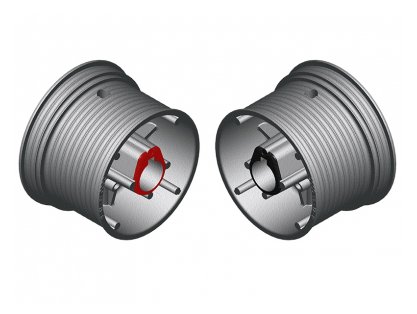

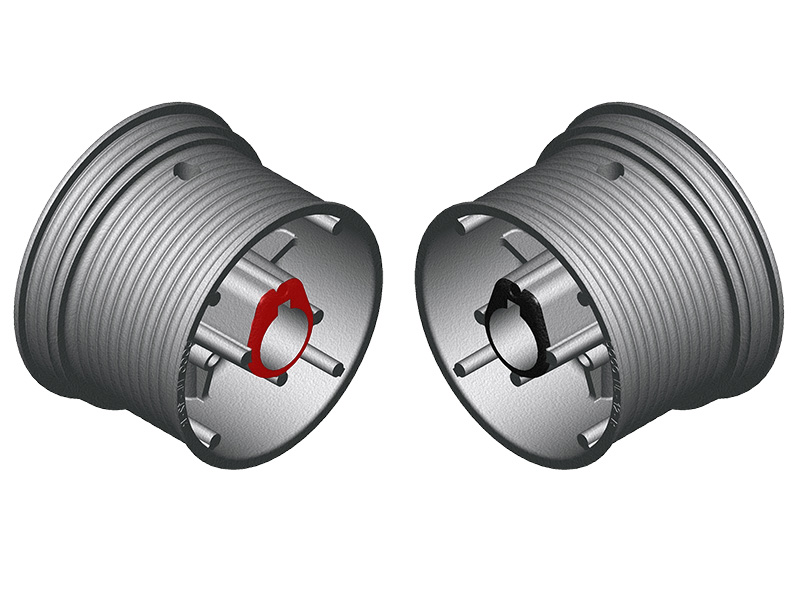

Marking: Red = Left, Black = Right
